CNC Engraving Machine Control Board, 3 Axis GRBL 1.1 V3.4 USB Port Engraver Controller Milling Machine Control Board With Emergency Stop And Limit disponible en Yaxa Venezuela

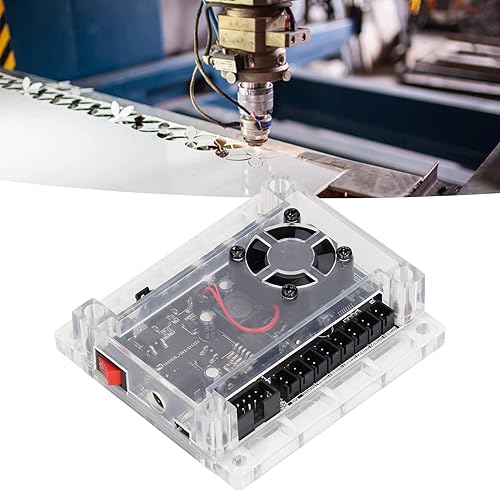

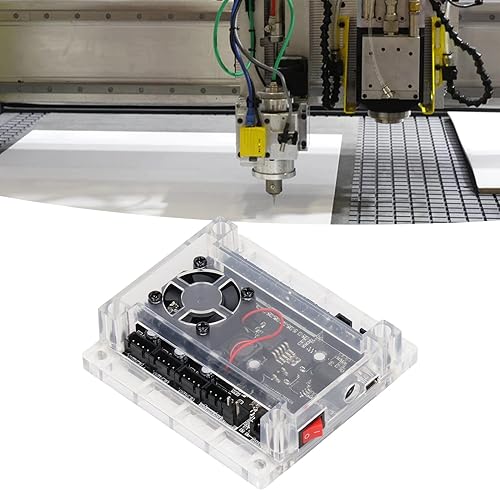

CNC Engraving Machine Control Board, 3 Axis GRBL 1.1 V3.4 USB Port Engraver Controller Milling Machine Control Board With Emergency Stop And Limit

Categoría: Herramientas de Corte

Envío gratis

Precio y disponibilidad de CNC Engraving Machine Control Board, 3 Axis GRBL 1.1 V3.4 USB Port Engraver Controller Milling Machine Control Board With Emergency Stop And Limit

$74.77

Comprar ahora ¿Tienes dudas? Escríbenos
Stock disponible

Entrega internacional estimada de 7 a 12 dias habiles en Venezuela.

Pago seguro garantizado

Información de CNC Engraving Machine Control Board, 3 Axis GRBL 1.1 V3.4 USB Port Engraver Controller Milling Machine Control Board With Emergency Stop And Limit

Descripción detallada +

Feature:1. AUTOMATICALLY IDENTIFY WITH OPTOCOUPLER ISOLATION: Add offline recognition, can insert offline module and computer at the same time. Offline will automatically identify whether there is computer control. The spindle drive increases the optocoupler isolation, so that the control board generates less heat, and the spindle speed regulation is more linear and safer2. IMPROVED USB INTERFACE: The original USB interface is patch welding, easy to drop due to transportation collision and improper use, and now it is changed to a plug in, very powerfulSpecification:Item Type: CNC Engraving Machine Control BoardConnection: USB (USB CH340)Software: For GRBL Controller, for UniversalGcodeSenderMain Control Chip: For Atmel 328PSpindle Drive Chip: For MOSFET (recommended 24V, current within 10A)Spindle PWM Speed Regulation: SupportSupport Stepper Motor: 12V, within 1.5A, it is recommended that the maximum current be less than 2A, and heating. (any stepper motor 42, 57)Laser Engraving: SupportPower Interface: 5.5-2.5mm DC interfaceSupports: For GRBL Contol or Candle (3 axes); Laser for GrblSupport System: For Windows XP 7 8 10Support Laser: 12V 5A maximumSpindle Motor Interface: Maximum support 400W DC spindle motorSupport XYZ three axes control, spindle, laser headPackage List:1 x CNC Engraving Machine Control Board1 x USB Data Cable

Beneficios rápidos +
  • Envío rápido
  • Pago seguro
  • Garantía incluida
  • Soporte por WhatsApp
Beneficios clave de CNC Engraving Machine Control Board, 3 Axis GRBL 1.1 V3.4 USB Port Engraver Controller Milling Machine Control Board With Emergency Stop And Limit +
  • Improved USB Interface: Upgraded USB interface with a plug-in design for enhanced durability, reducing the ri-sk of detachment due to transportation or improper use.
  • Versatile Compatibility: Compatible with GRBL Controller and UniversalGcodeSender software, supporting stepper motors with 12V and a maximum current of 2A. Ideal for any 42 or 57 stepper motor.
  • Spindle and Laser Support: Equipped to support 400W DC spindle motors and la-sers, providing comprehensive control for XYZ three axes, spindle, and la-ser head.

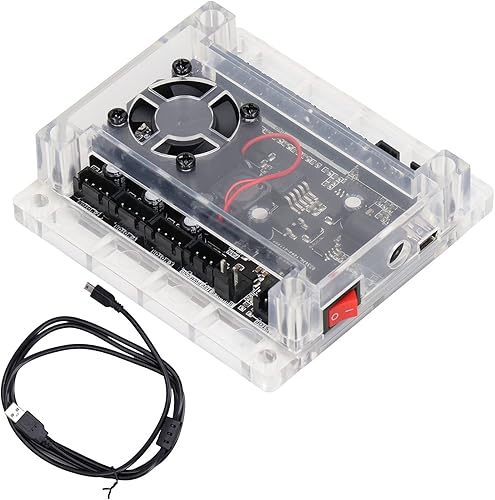

  • User-Friendly Design: Convenient power interface with a 5.5-2.5mm DC interface, easy-to-use USB data cable included. Supports Win-dows XP, 7, 8, 10 operating systems.

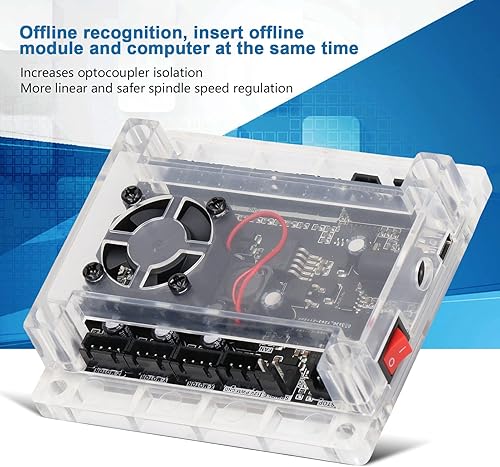

  • Optocoupler Isolation with Automatic Recognition: Enhanced with offline recognition
  • this cnc engraver control board allows simultaneous connection of an offline module and computer. The optocoupler isolation in the spindle drive minimizes heat generation
  • ensuring linear and safe spindle speed regulation.
  • Improved USB Interface: Upgraded USB interface with a plug-in design for enhanced durability
  • reducing the ri-sk of detachment due to transportation or improper use.
  • Versatile Compatibility: Compatible with GRBL Controller and UniversalGcodeSender software
  • supporting stepper motors with 12V and a maximum current of 2A. Ideal for any 42 or 57 stepper motor.
  • Spindle and Laser Support: Equipped to support 400W DC spindle motors and la-sers
  • providing comprehensive control for XYZ three axes
  • spindle
  • and la-ser head.
  • User-Friendly Design: Convenient power interface with a 5.5-2.5mm DC interface
  • easy-to-use USB data cable included. Supports Win-dows XP
  • 7
  • 8
  • 10 operating systems.
¿Por qué comprar en Yaxa? +

Envíos a todo el país

Cobertura nacional con aliados confiables.

Garantía Yaxa

Productos originales y respaldo local.

Pagos seguros certificados

Procesamos tus pagos con pasarelas auditadas.

Ficha técnica +
Fabricante
Generic
SKU
B0CNDC3V9L
